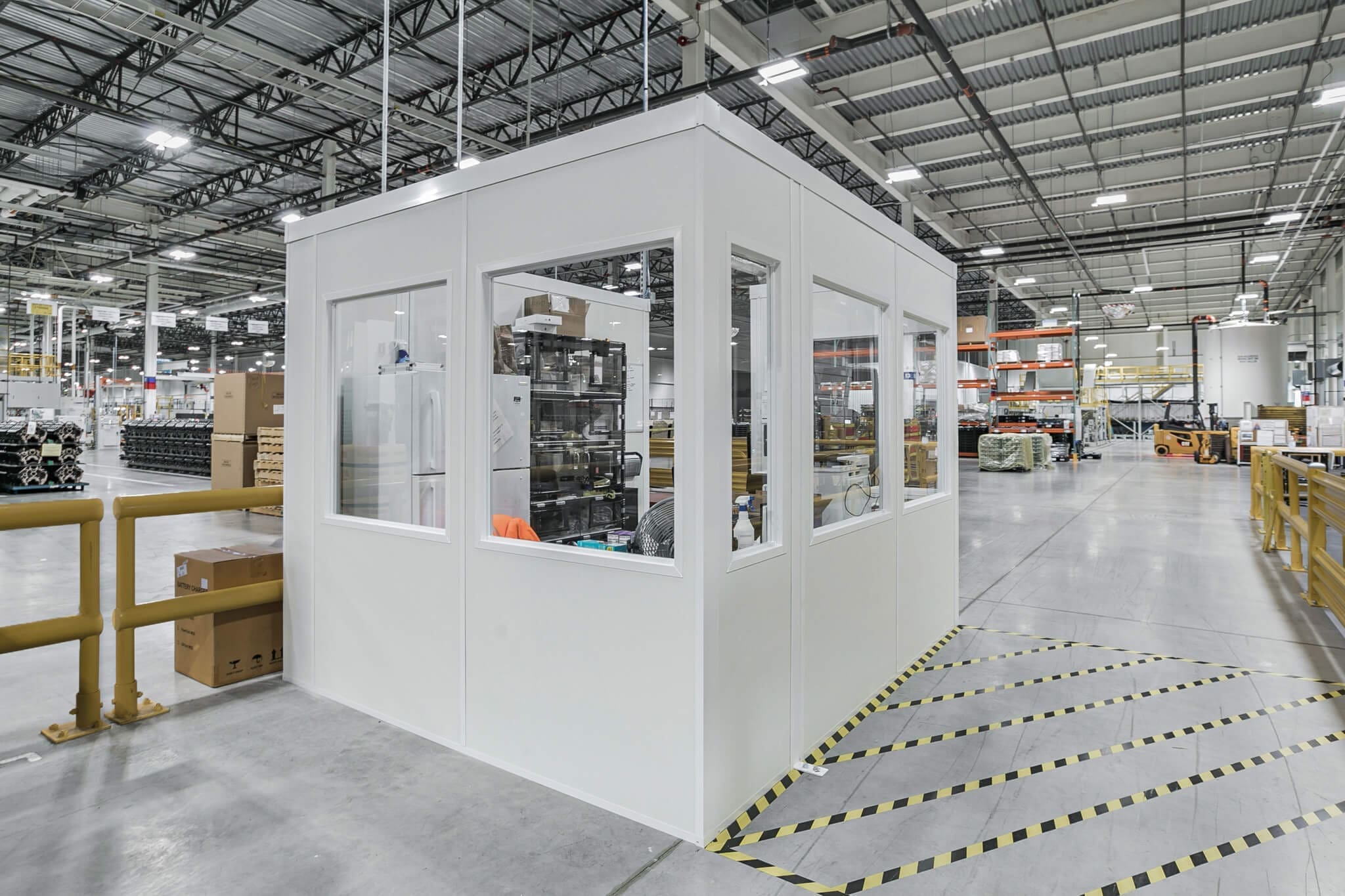

Single Story Modular Offices
Two Wall Systems, Unlimited Applications
Whether you’re enclosing people, a critical process or products, A-WALL in-plant buildings can be designed to provide the acoustic, thermal and structural performance your project requires. Below are two wall “systems” that represent combinations of A-WALL components configured to meet typical in-plant building needs. However, when your project requires a special design or environmental controls, there are infinite ways to integrate these components and accessories to meet your in-plant building requirements.
Regardless of design, the average shipment of an A-WALL project is less than 10 working days after drawing approval.
Excellent Sound Control
Full wall thickness at panel connections and corners keep sound out… no hollow wiring posts.
Unlimited Wiring Capability
Exclusive design allows hidden wiring in any panel, at any location using standard boxes and devices.
A-WALL interior building components carry a 10 year guarantee.

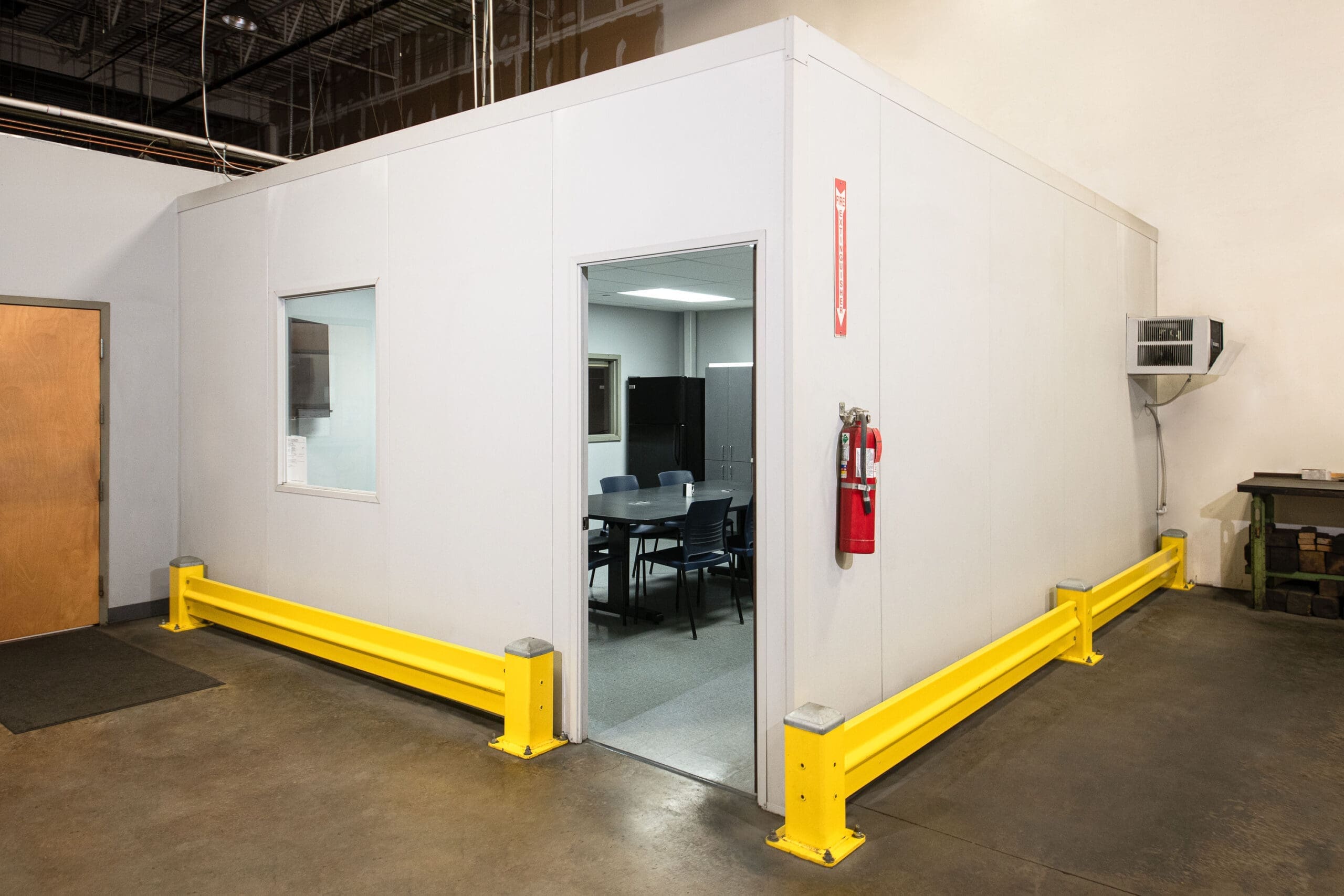

The Appearance of Permanent Construction
A-WALL 200 offers all the benefits of a modular in-plant office, without the modular appearance! Fine line seams at panel intersections give it a monolithic look, similar to that of conventional construction.
Rugged, 6 mil. vinyl panel surfaces will withstand the abuse of an industrial environment and clean easily with most spray detergents. For a custom look and significant savings, unfinished panels are also available for field painting to corporate color schemes. Baked enamel finished connecting components resist corrosive environments and are factory cut to size for fast, field assembly.
Concealed Framing Members
Buildings look less “demountable” using hidden, friction-fit steel studs to connect the panels.
Interior Ceiling Heights Up to 8′- 6″
Building sizes and configurations are virtually unlimited.
Vinyl or Paintable Panel Surfaces
Durable, vinyl panel surfaces or paint panels to desired corporate color scheme.

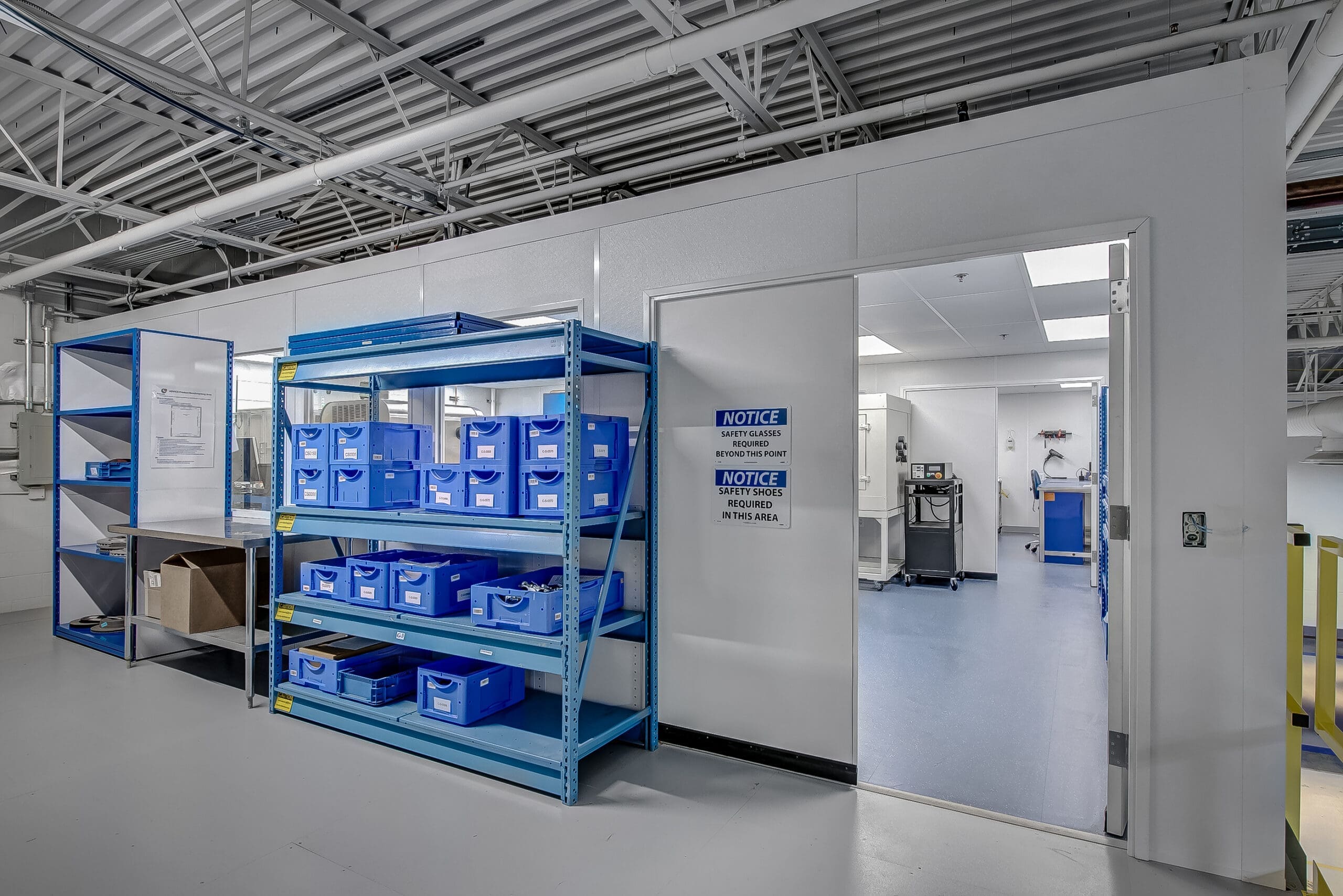

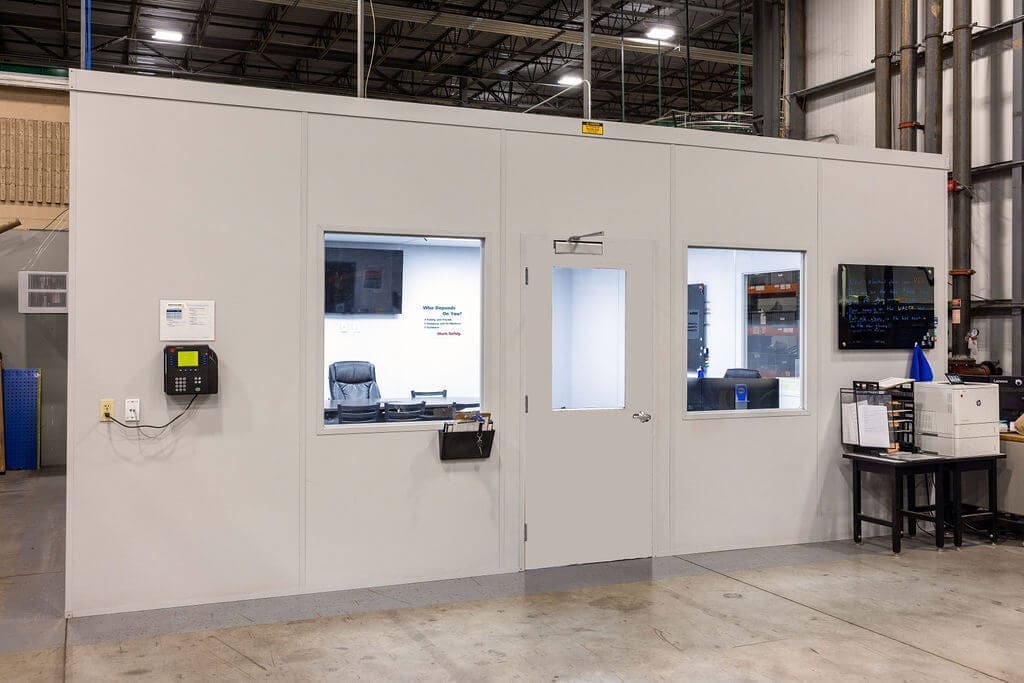

The Versatile Building System
A-WALL 300 is the most versatile in-plant building system available today. I-Studs located at the panel connections significantly reduce installation time and allow panel stacking for custom building heights. The I-Studs are electrostatically painted to coordinate with the panel finish. A full wall thickness at panel connections and corners insures consistent sound and temperature control as well as creating a uniform fire barrier for your building.
Simple I-Stud Panel Connectors
Panels install quickly without fasteners using color coordinated I-Studs.
Standard Ceilings Up to 11′- 6″
Custom buildings available with higher ceilings as required.
Mix or Match Panel Finishes
Choose from vinyl, FRP, steel, or unfinished paintable panel surfaces

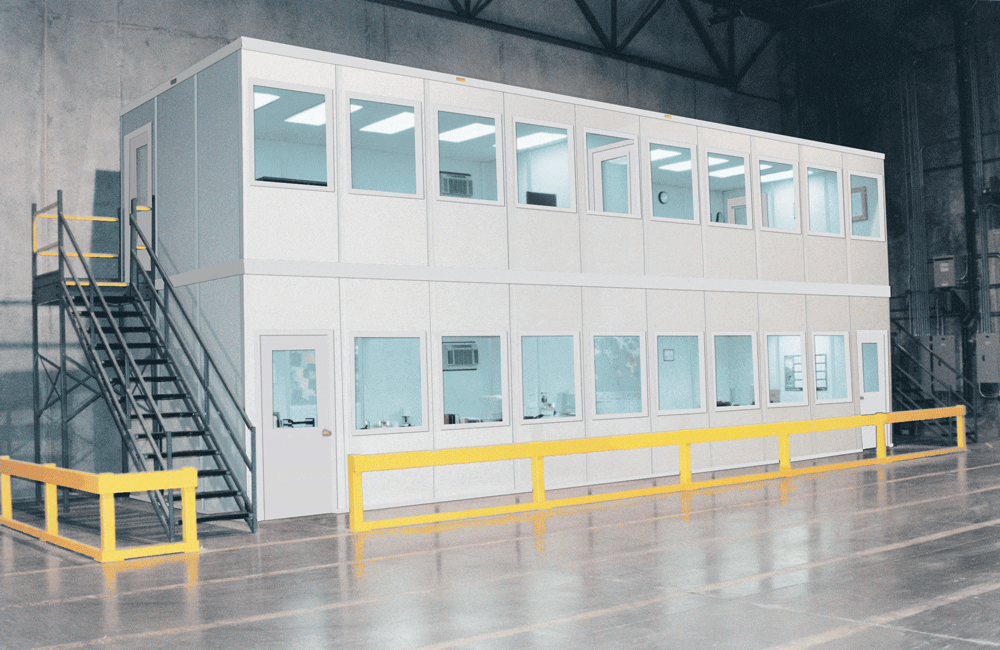

Two Story Modular Offices
The Structural Building System
A-WALL 400 is a two-story in-plant office system that improves plant surveillance and takes advantage of wasted, overhead space. A safer building system, A-WALL 400 was designed using stringent safety factors and thoroughly tested at a leading, Midwest university.
Building assembly is fast, using lightweight, galvanized steel floor joists and simple hanger bracket assemblies. The second story floor is constructed of 3/4″ tongue and groove premium plywood, ready for field applied tile or carpet. Unlike conventional construction using fabricated bar joists, all components are in-stock for quick shipment.
Structural Channel Studs Support up to 17,000 Pounds
Structural support for the upper level is concealed using color coordinated channel studs and steel reinforced corners.
A-WALL Panels Support up to 6,000 Pounds Vertical Load
Exclusive, panel design is similar to that of conventional construction and available with vinyl, FRP, steel or unfinished panel surfaces, suitable for custom painting on-site.
Meets All Major Building Codes
Exceeds all national standards governing load and deflection.
Utilize Wasted Overhead Space
Requires less than 18′ of clear height.
Clear Spans up to 22′
Custom building configurations of unlimited size available as required.
Exclusive Features and Accessories
Click on any of the tabs below to learn more about features and accessories for your A-WALL modular office or inplant building.
A-WALL panels are constructed like a permanent, stud and drywall wall. However, the standard panels feature Type X, Firecode® gypsum board with a specially formulated core that's a superior fire barrier compared to regular drywall. The gypsum board panel surfaces are "decoupled" by insulating ribs which significantly reduce sound transmission from one side of the panel to the other. These ribs also create three, independent wiring cavities which are sized to accept standard electrical boxes and allow unlimited wiring flexibility. You can request single or ganged switches and outlets, as well as phone and data boxes wherever you need them. And later, you can install additional devices in the panels when needed using off the shelf electrical components.
Both standard and poly-core A-WALL panels are shipped with UL Listed switch and receptacle assemblies factory installed and wired in the panels. You specify the electrical devices you require and designate their locations. The standard electrical package includes a main breaker panel, 2’ x 4’ recessed, fluorescent light fixtures, switches, receptacles and device boxes with pull lines for your communication and data wiring.
A-WALL buildings can be equipped for virtually any application with a range of optional accessories.
- Heating, Ventilation and Air Conditioning
- Sound and Temperature Control
- Ceiling Systems
Did You Know?
A-WALL modular offices are shipped with U.L. listed switch and outlet assemblies factory installed in the wall panels.
Factory wired panels reduce your installation time and labor cost.
