Movable Walls

Modular Office Walls

Build for Change

A-WALL modular office walls are designed for re-usability, versatility and with aesthetics in mind. Large A-WALL in-plant buildings can be divided into multiple rooms using AWALL Partitions, then easily re-arranged later as needs change. They are also used to create private rooms in existing, permanent office areas. A two-piece ceiling track allows A-WALL modular office walls to be installed below new or existing suspended ceilings. This feature not only allows ease of future relocation but also can reduce the initial cost of suspended ceilings when compared to installing individual ceilings in each room. Flooring cost savings is another benefit of using AWALL. The two piece floor track can be installed over carpet with Velcro tape, or on hard floor finishes using double faced, adhesive tape. Changes can be made later without permanent damage to floors.

Excellent Sound Control

Sound characteristics comparable to that of stud and drywall partitions.

Unlimited Wiring Capability

Exclusive design allows UL Listed, factory-installed, switches and receptacles, located wherever needed.

Removable Ceiling and Floor Tracks

Ceiling and floor tracks allow partition installation between suspended ceilings and finished floors for total flexibility.

Standard Heights Up to 12′

Custom partition heights available for higher ceilings as required.

Prefinished or Paintable Panel Surfaces

Choose a durable, vinyl wall surface or unfinished panels that can be painted on-site.

Modular In-Plant Walls

Segregate Processes, Products or Personnel

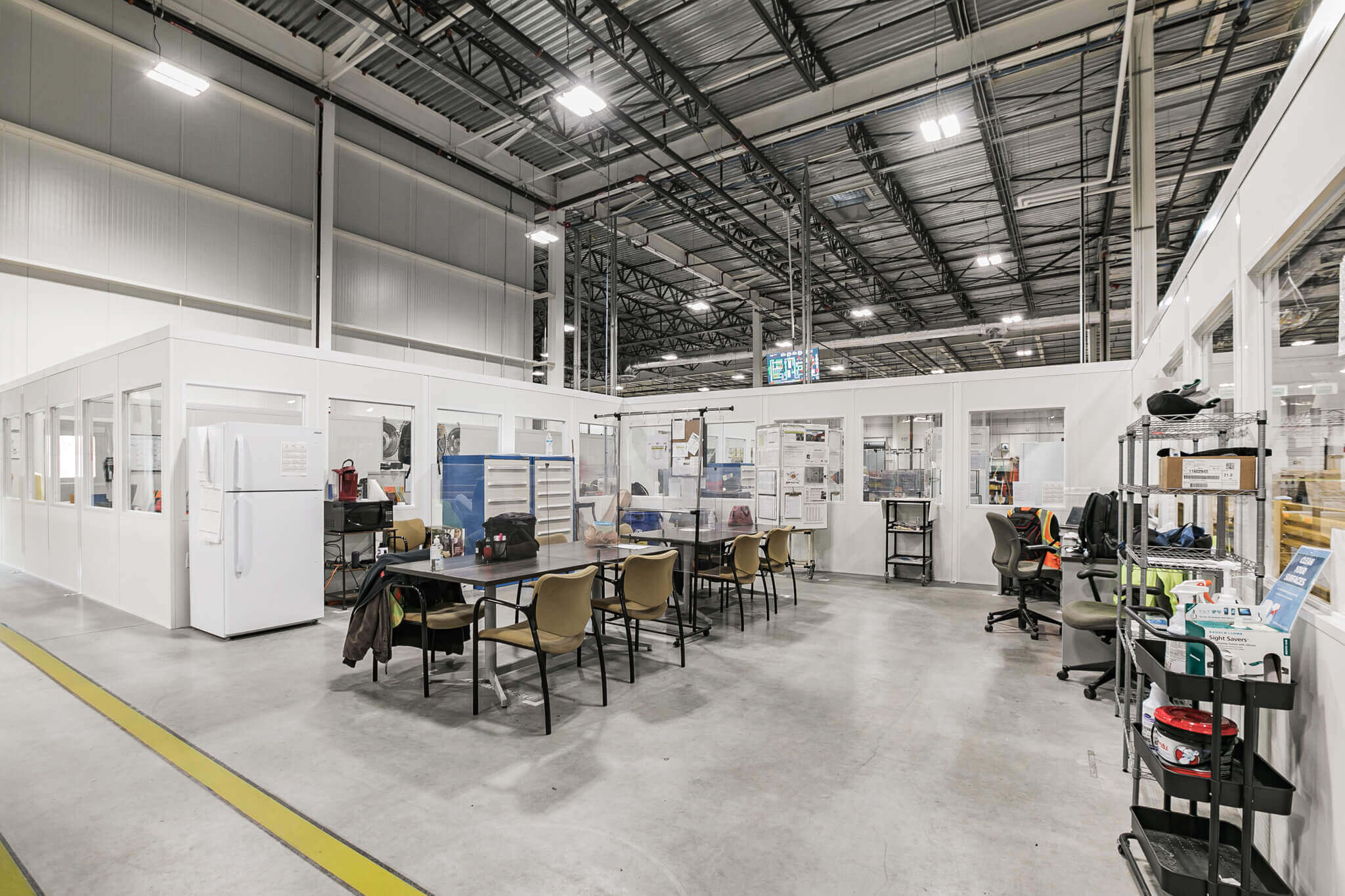

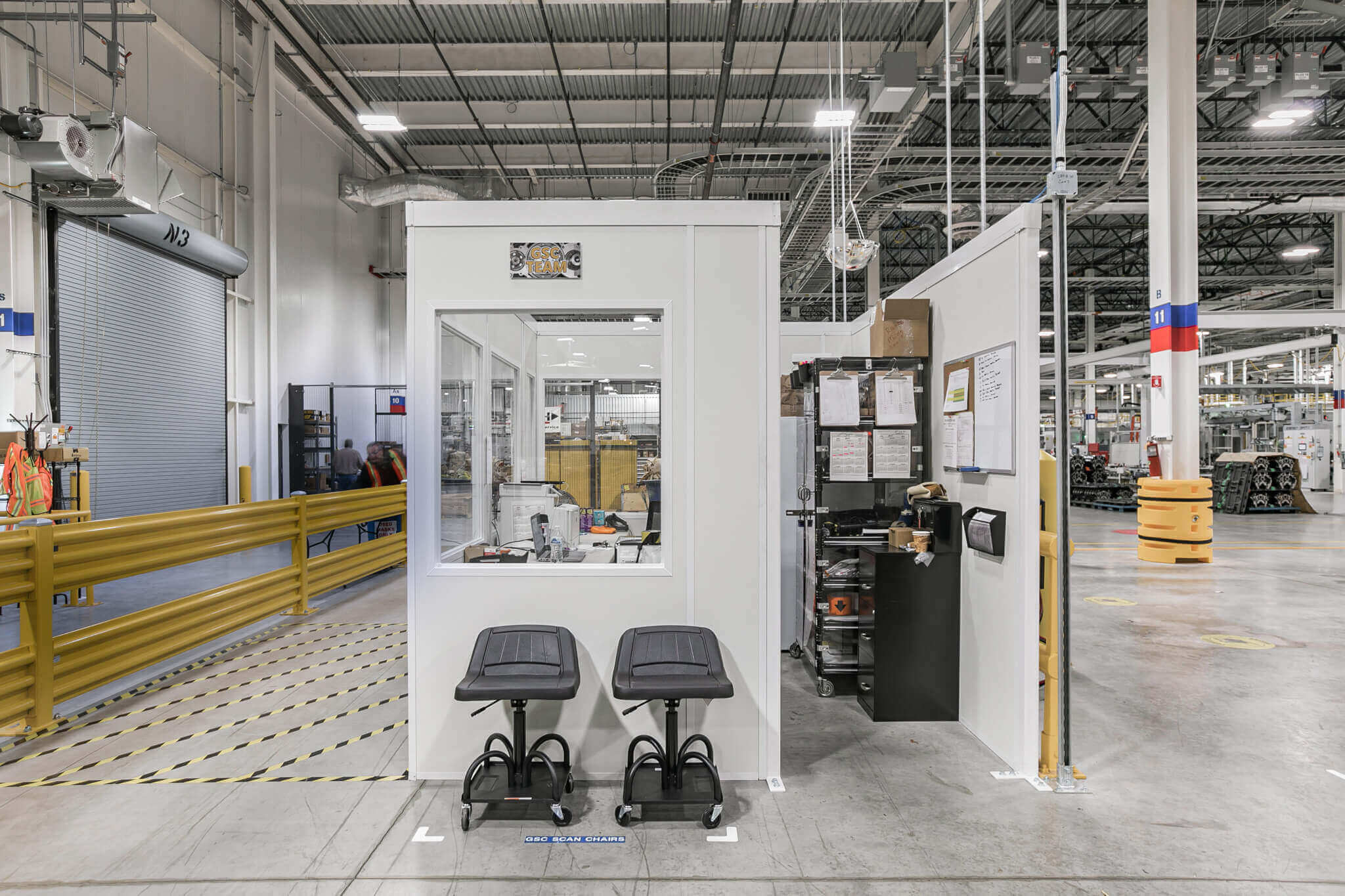

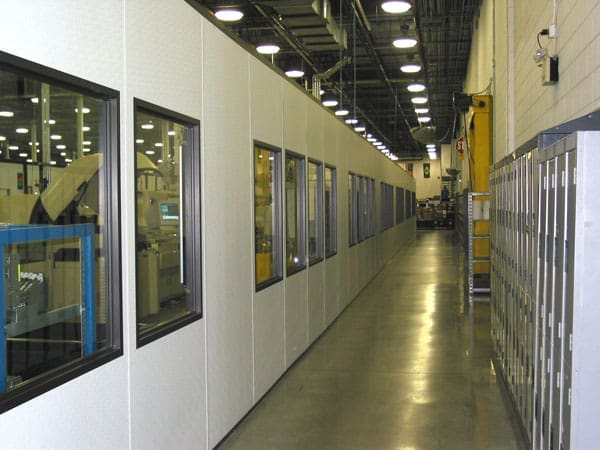

Freestanding, in-plant modular walls segregate areas of manufacturing facilities and warehouses for safety, security or privacy. Common applications include walkways for pedestrian traffic next to machinery, employee break areas, visual privacy barriers for security purposes and safety barriers to protect people from hazardous operations such as welding and grinding. The applications are endless and when needs change, so do A-WALL in-plant partitions.

Modular in-plant walls are supported laterally by color-coordinated, steel stabilizer posts. Or, if the facility’s roof structure is low enough, they can be braced to beams or joists above. A continuous electrical raceway on top of the walls conceals conduit to power factory installed receptacles or low voltage device boxes. Man doors and windows are provided when needed for access and visibility.

Unlimited Wiring Capability

Exclusive design accommodates UL Listed, factory-installed receptacles, located wherever needed.

Electrical Raceway Conceals Wiring

A continuous electrical raceway on top of the walls conceals conduit and wires.

Standard Heights Up to 12′

Custom partition heights available for higher ceilings as required.

Mix or Match Panel Finishes

Choose from vinyl, FRP, steel or unfinished, paintable panel surfaces.

Exclusive Features and Accessories

Click on any of the tabs below to learn more about features and accessories for your A-WALL modular office or inplant building.

A-WALL panels are constructed like a permanent, stud and drywall wall. However, the standard panels feature Type X, Firecode® gypsum board with a specially formulated core that's a superior fire barrier compared to regular drywall. The gypsum board panel surfaces are "decoupled" by insulating ribs which significantly reduce sound transmission from one side of the panel to the other. These ribs also create three, independent wiring cavities which are sized to accept standard electrical boxes and allow unlimited wiring flexibility. You can request single or ganged switches and outlets, as well as phone and data boxes wherever you need them. And later, you can install additional devices in the panels when needed using off the shelf electrical components.

Learn More

Both standard and poly-core A-WALL panels are shipped with UL Listed switch and receptacle assemblies factory installed and wired in the panels. You specify the electrical devices you require and designate their locations. The standard electrical package includes a main breaker panel, 2’ x 4’ recessed, fluorescent light fixtures, switches, receptacles and device boxes with pull lines for your communication and data wiring.

Learn More

A-WALL buildings can be equipped for virtually any application with a range of optional accessories.

  • Doors
  • Windows
  • Heating, Ventilation and Air Conditioning
  • Sound and Temperature Control
  • Ceiling Systems

Learn More

Did You Know?

A-WALL modular offices are shipped with U.L. listed switch and outlet assemblies factory installed in the wall panels.

Factory wired panels reduce your installation time and labor cost.
