Modular Made Easy
Fast. Flexible. Affordable.

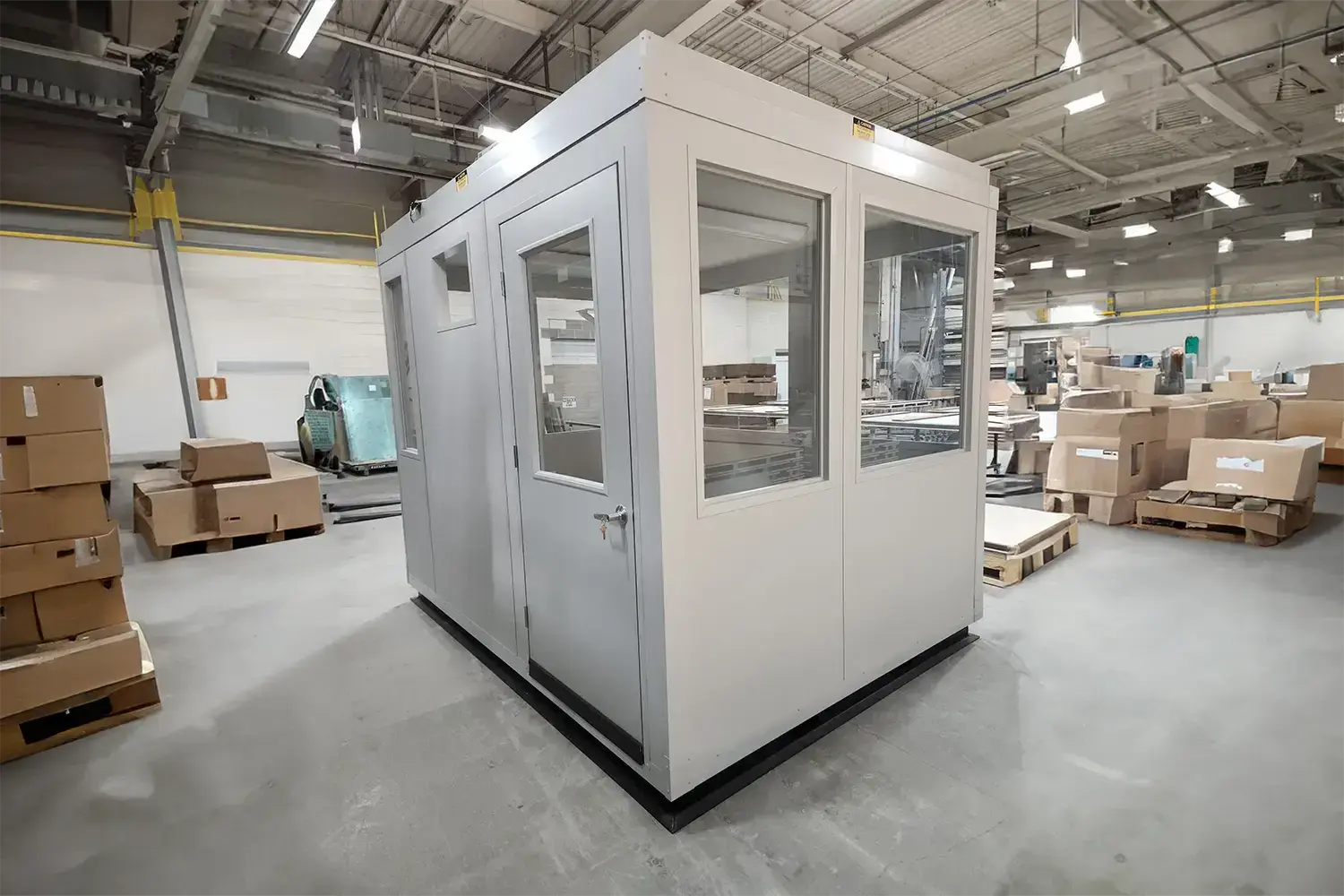

A-WALL modular offices and in-plant buildings are easy to install, easy to relocate and easy on your construction budget. They require fewer parts than comparable building systems and the electrical devices are factory installed in the wall panels. This means your initial installation and future changes will require less time – and time is money.

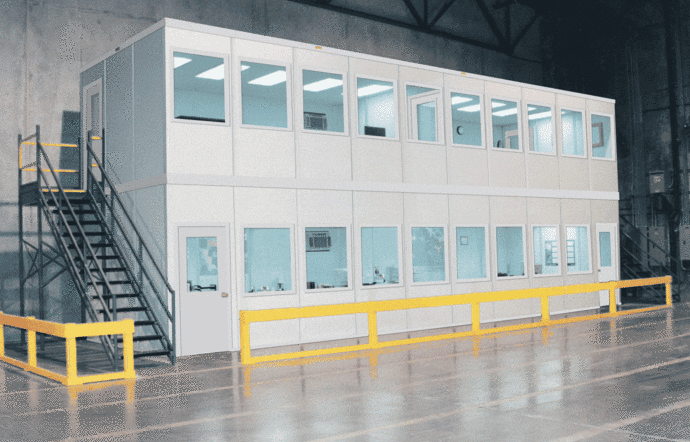

A-Wall Modular Office and Building Applications
Why A-Wall Modular Offices?

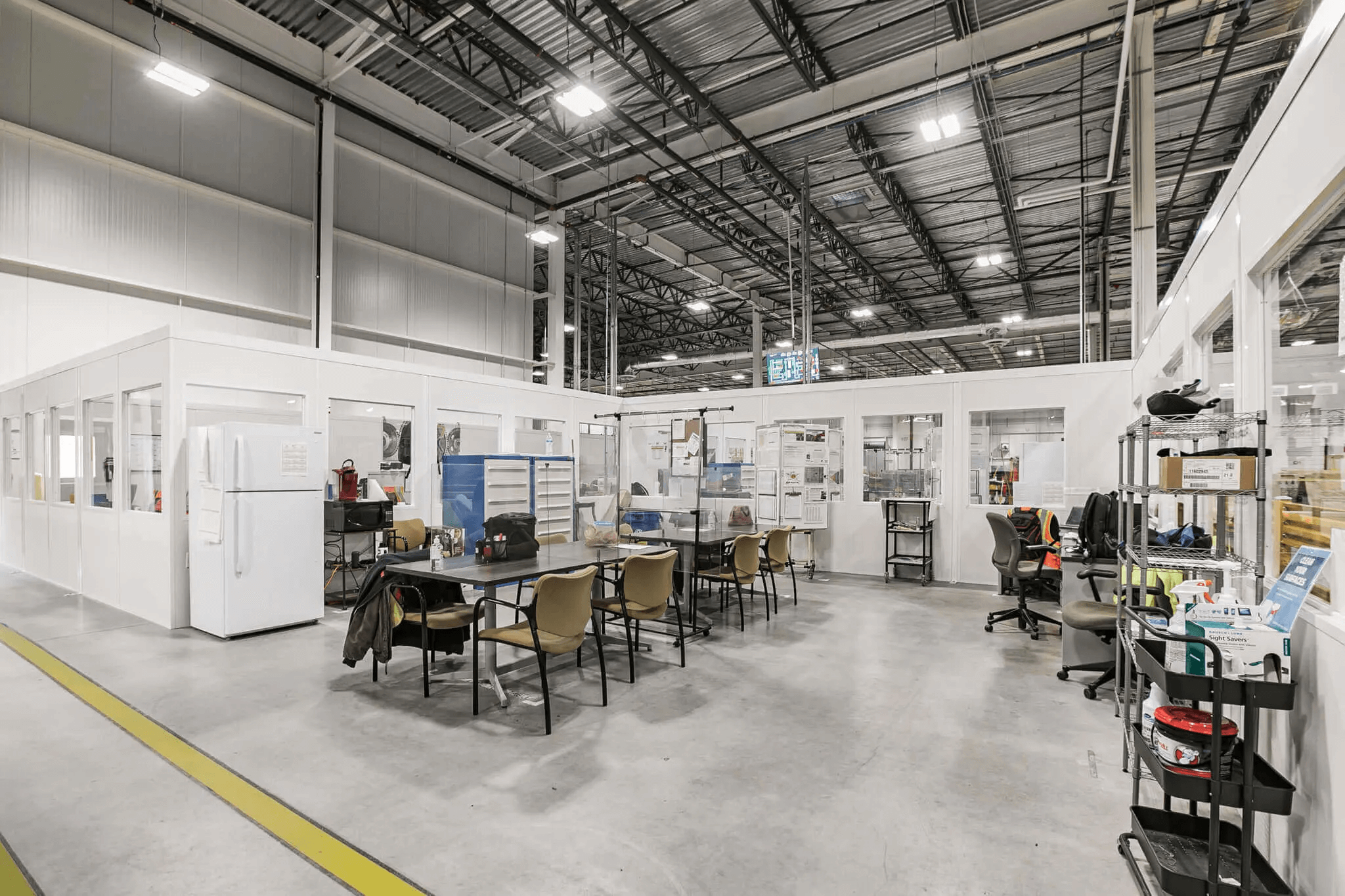

A-WALL Buildings and Walls are Relocatable
A-WALL offers all of the benefits of permanent, gypsum board construction but can be relocated or rearranged as needs change, with 100% component reusability.
Quiet, Fire Retardant Construction
The A-WALL gypsum board panel has sound control and fire retardant properties that rival stud and drywall walls.
Rapid Assembly Without the Mess and Disruption
All building components are pre-engineered for simple assembly. No gypsum dust or lengthy distractions to plant productivity.
Factory Controlled Quality
Every component of an A-WALL building is manufactured to rigid tolerances and systematically inspected before shipment. Project quality is not dependent on the skills of the on-site tradesman.
Significant Tax Advantage
As equipment, modular offices can be depreciated over 7 years compared to stud and gypsum, which must be depreciated over 39 years. Also, for 2017, $500,000 can be expensed immediately in accordance with Section 179 of the Internal Revenue Code. Faster depreciation can mean significant tax savings*..
*Potential tax benefits should be reviewed with an accountant or tax attorney

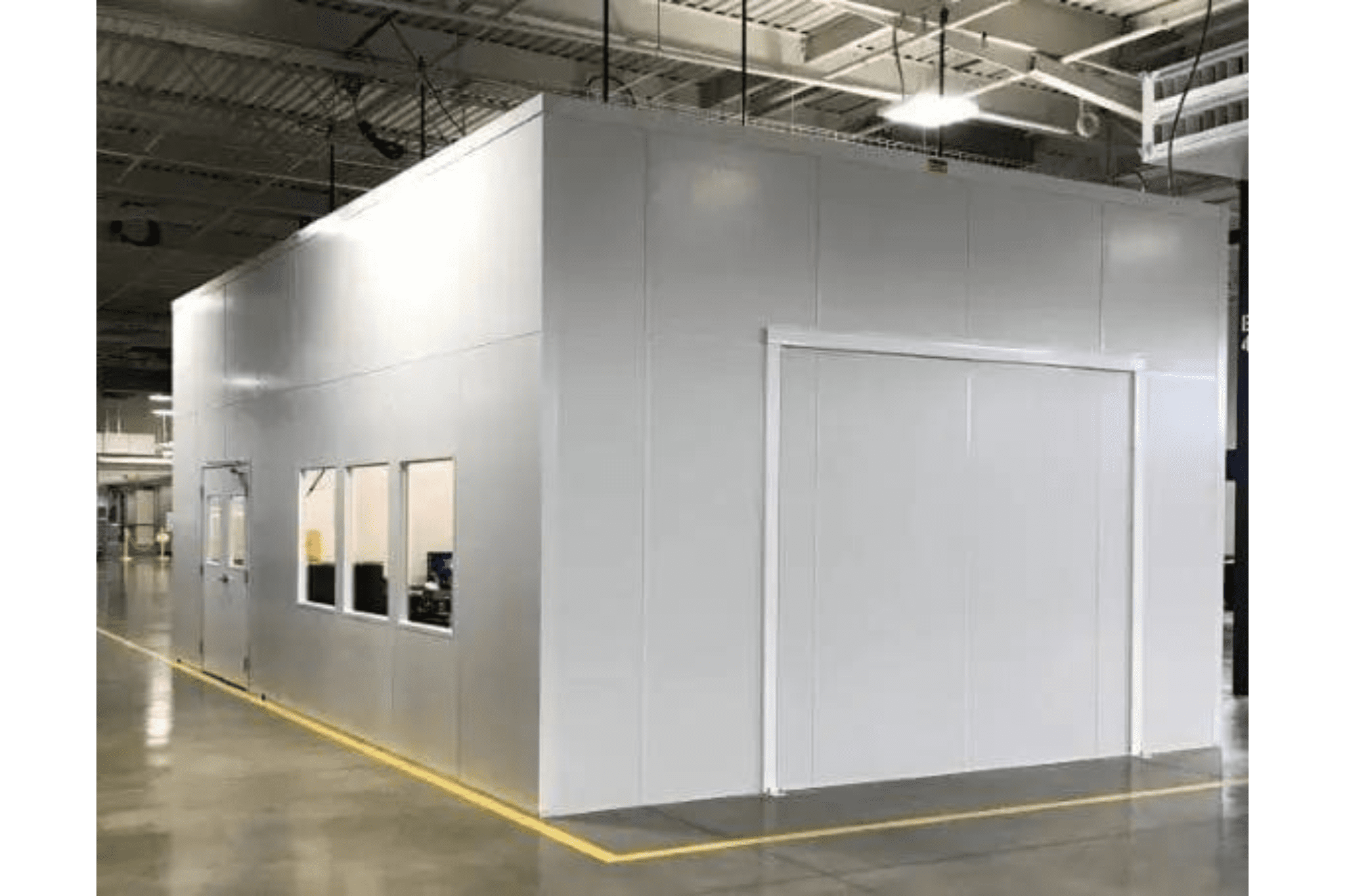

“When we purchased an additional coordinate measuring machine, we chose A-WALL to create our larger CMM room. The new room was assembled in a matter of days… A fraction of the down-time we would have experienced had we chosen stud and drywall construction.”
Welded Ring Products
“Our in-house installation team was impressed with the assembly instructions and detailed drawings that arrived with our A-WALL parts cleaning and assembly rooms. The wall panels and connecting components were pre-cut and marked to match the drawings. This significantly reduced our installation time. We quoted 5 other companies in this process and A-WALL was the obvious choice.”
– Walt Liebler
Skilled Manufacturing, Inc.
“After evaluating several manufacturers of modular room enclosures, we selected A-WALL for their superior product, wide variety of options and quick delivery at extremely competative prices. Their staff was great to work with, and their installers were efficient and professional. Our buildings turned out far better than we expected, and I would recommend this product to anyone.”
– Seth Krem
RTI International Metals, Inc.
Selected by leading brands nationwide:
Exclusive Features and Accessories
Click on any of the tabs below to learn more about features and accessories for your A-WALL modular office or inplant building.
A-WALL panels are constructed like a permanent, stud and drywall wall. However, the standard panels feature Type X, Firecode® gypsum board with a specially formulated core that's a superior fire barrier compared to regular drywall. The gypsum board panel surfaces are "decoupled" by insulating ribs which significantly reduce sound transmission from one side of the panel to the other. These ribs also create three, independent wiring cavities which are sized to accept standard electrical boxes and allow unlimited wiring flexibility. You can request single or ganged switches and outlets, as well as phone and data boxes wherever you need them. And later, you can install additional devices in the panels when needed using off the shelf electrical components.
Both standard and poly-core A-WALL panels are shipped with UL Listed switch and receptacle assemblies factory installed and wired in the panels. You specify the electrical devices you require and designate their locations. The standard electrical package includes a main breaker panel, 2’ x 4’ recessed, fluorescent light fixtures, switches, receptacles and device boxes with pull lines for your communication and data wiring.
A-WALL buildings can be equipped for virtually any application with a range of optional accessories.
- Heating, Ventilation and Air Conditioning
- Sound and Temperature Control
- Ceiling Systems
Did You Know?
A-WALL modular offices are shipped with U.L. listed switch and outlet assemblies factory installed in the wall panels.
Factory wired panels reduce your installation time and labor cost.
